MS Water Treatment Vessels
12″ NB to 3000 NB — up to 10 Bar
Pressure vessels fabricated from IS 2062 mild steel and 100% hydro-tested before dispatch. Six standard types — sand filter, activated carbon, pressure sand, softener, multi-grade and chemical dosing — built to ASME Sec VIII / IS 800 / IS 1161.
Manufacturing / supply unit
MS Vessel Water Treatment Manufacturing Unit — Salua, Baruipara
Specifications
| Material | Mild steel (IS 2062) |
|---|---|
| Design pressure | Up to 10 Bar |
| Design temperature | Up to 90°C |
| Construction | Vertical / horizontal |
| Surface treatment | Internal epoxy coating, external paint coating |
| Nozzle type | Flanged / screwed |
| Inspection | 100% hydro tested |
| Standards | ASME Sec VIII / IS 800 / IS 1161 |
| Custom size | 12″ NB to 3000 NB |
Applications
Water treatment plants (WTP)Effluent treatment plants (ETP)Sewage treatment plants (STP)Industrial filtration systemsRO / DM / softener plantsChemical dosing & storage
Quality assurance
Every lot is tested in our NABL-accredited laboratory and shipped with a certificate of analysis.

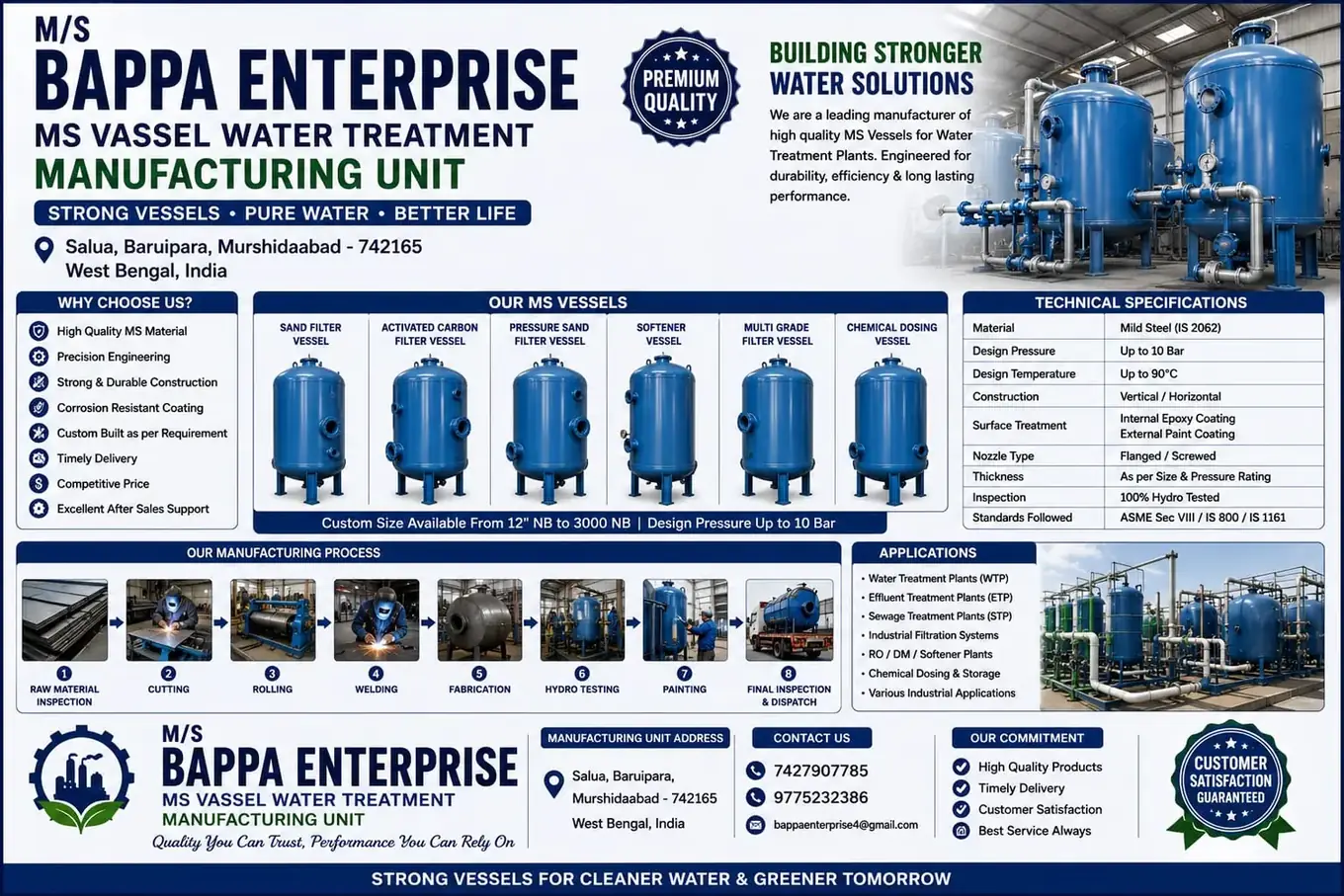

Datasheet
The full technical sheet
Tap to enlarge
Tell us what you need and the quantity.
Send the grade and destination — you will have a price and availability back the same working day.
